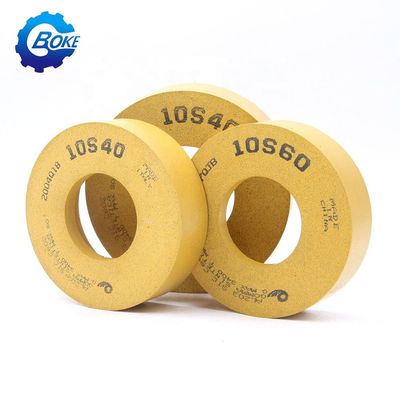

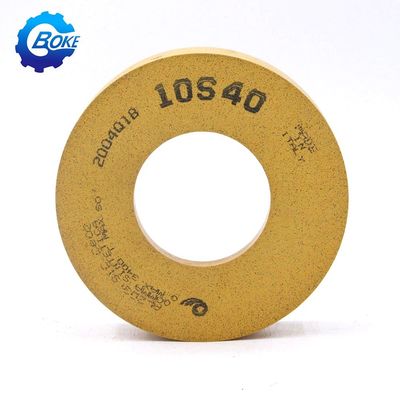

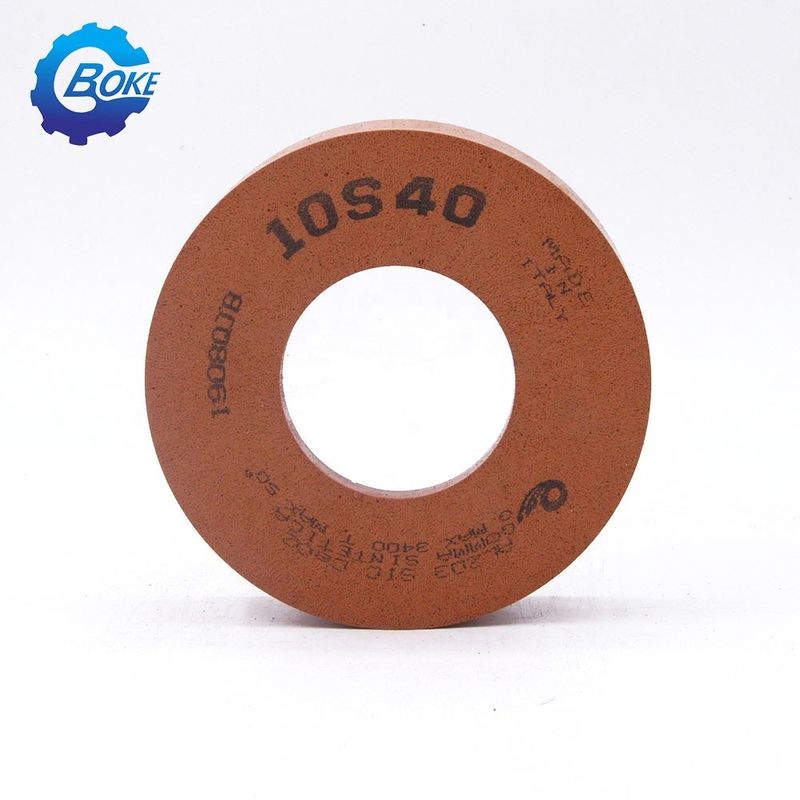

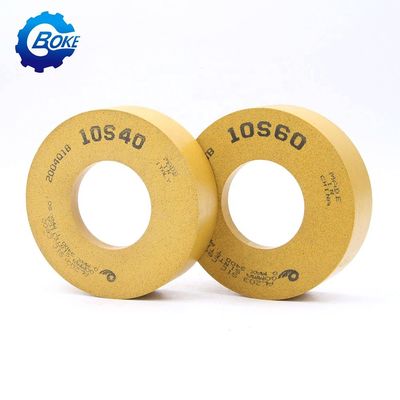

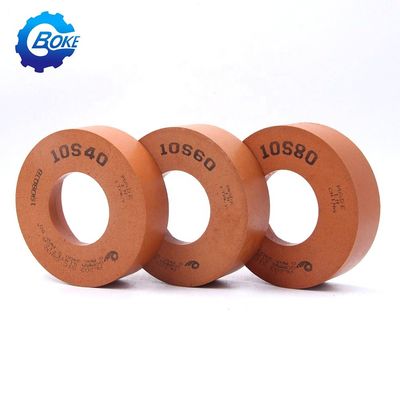

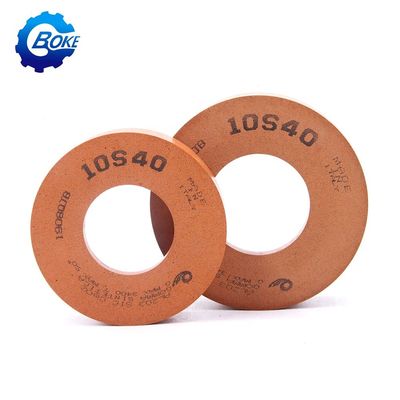

New Material Abrasive 150 x 70 x 40mm For Straight Line Double Edger 10S40 Glass Polishing Wheel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | BOKE |
| Model Number: | PW02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $4.11 - $5.74/pieces |
| Packaging Details: | carton |
|
Detail Information |
|||
| Warranty: | 1 Years | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Type: | Abrasive Disc, Abrasive Polishing Wheel | Brand: | BOKE |
| Product Name: | 10s Polishing Wheel | Application: | Glass Polishing |
| Grit: | 40# / 60# / 80# | Thickness: | 40mm / 1.5in |
| Inner Hole: | 70mm/60mm | Usage: | Glass Grinding Polishing Diamond Wheels Glass |
| Delivery Time: | 10 Days After Deposite | Material: | Rubber,Polishing Powder |
Product Description
Product Introduction
BAND | BOKE |
PRODUCT NAME | 10S Polishing Wheel |
BINDING AGENT | Rubber、Polishing Powder |
SIZE | 150*70*40mm、130*60*35mm |
USE | Glass Polishing |
SPEED | 2800r/min |
APPLICATION | Glass Edging,、Glass Polishing |
APPLICABLE MODELS | Straight Edge Machine, Bilateral Machine |
OEM OR ODM | Available |
Delivery time | 10 days after deposite |
Details Images
Products Description
Application: Used for polishing the bottom edge of straight edge machine and bilateral machine. 10S polishing series-used for the bottom edge and 45 degree chamfer polishing of the glass on the straight edge machine, and can also be used for the fine grinding of the glass bevel. When this product is used for straight bevel machining, the front process must be matched with diamond wheels and resin wheels, and the latter process must be matched with wool wheels. Parameter description: This product must use coolant. Please use it at a high line speed of 30m/s. Features: Excellent elasticity and wear resistance have the following advantages: it can fully contact the glass periphery, and there will be no defects on the glass periphery after fine grinding and polishing; it provides space for eliminating wear debris, reduces pressure and reduces the risk of burns; makes glass Peripheral polishing is easier.
Effect picture
The polishing wheel is generally made of multiple layers of canvas, felt or leather. The two sides are clamped by metal circular plates, and the rim is coated with a polishing agent that is uniformly mixed with micronized abrasives and grease. When the polishing wheel (cloth) is polished, the high-speed rotating polishing wheel (circumferential speed above 20 m/s) is pressed against the workpiece, so that the abrasive can roll and micro-cut the surface of the workpiece, thereby obtaining a bright machined surface with a normal surface roughness It can reach Ra 0.63 ~ 0.01 microns; when non-greasy matting polishing agent is used, the bright surface can be matted to improve the appearance. The polishing wheels of various structures made of cotton, linen, woolen or synthetic materials have their unique advantages in terms of flexibility, wear resistance, economy, and polishing effect, and they play an important role in the polishing industry.
Manufacturing Technique
Relate product
Product packaging
FAQ
1.Q:Are you a trading company or manufacturer ? A: We are a manufacturer. 2.Q:Do you accept OEM brand ? A: Yes, OEM brand is acceptable. 3.Q:What is your package and delivery time ? A:The package for polishing wheel is carton box (standard export package). Delivery time is 7 days after got the deposit. 4.Q: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery 5.Q：Is there cheap shipping cost to import to our country? A：For small order, express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to the airport or by Express send to your door. 6. Q:Do you offer free samples of Diamond Grinding Wheel? A: Usually we do not provide free samples, but we can provide you with preferential prices when you need samples. 7.Q:How can we be your agent in our country? A:Please inform us of your detailed company, we will discuss and propose a helpful suggestion for you, and find the best solution for you.
8.Q:When you can reply to me when I send you an Inquiry? A：We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
